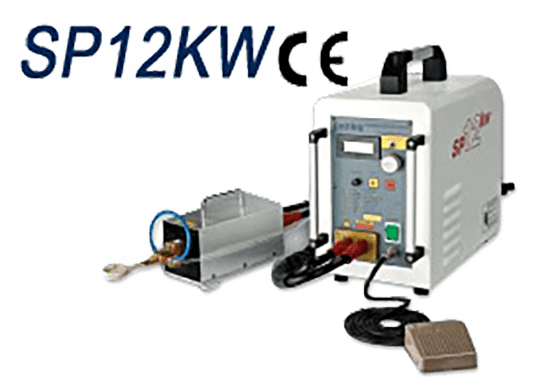

SP-12KW
High Frequency Induction Heating Machine
NA Series
Main Features
Main Features
- The machine employs an advanced powerful IGBT or MOS-FET power unit, combined with single chip control system to greatly reduce machine volume and weight.
- Features high power efficiency and high performance usually found on large power units.
- Full solid state power generator, combined with specially single chip control circuit, designed, assuring high power efficiency output.
- Power consumption is up to 20% lower than competitive models.
- Modular machine construction is easy & simple to use.
- The machine is specially designed and engineered for versatile applications such as quenching, tempering, silver welding, etc.
- Full case, IP63 design dust, and water-proof.
- Heat-treatment before forging.
Reduce Size and Weight
High Power
High Performance
Product Specifications
| MODEL | UNIT | SP-12KW | SP-40KWH |
|---|---|---|---|
| MAX. OUTPUT POWER | VAC | 220V(1ψ) | 220V(3ψ) |
| MAX. INPUT POWER | KW | 12 | 40 |
| OUTPUT FREQUENCY | KHZ | 80-300 | 50-200 |
| WATER FLOW | l/min | 3 | 10 |
| SIZE (L x W x H) | mm | 300 x 200 x 320 | 579x854x464 |
| NET WEIGHT | kg | 25 | 40 |
