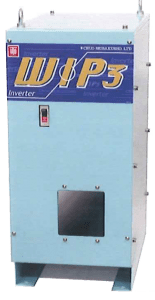

Compact Inverter Type Power Supply
Resistance Spot Welding Machine - DC Type
WIP3-4280
Description
Main Features
Description
High quality manufacture with various functions.
Main Features
- Various waveforms can be outputted. 2 step Upslop(for first and second welding) Max. 38 times pulsation (each 19 times for first and second welding).
- Max. welding time is 10 seconds(Output value depends on welding time).
- Output frequency range is 600-5000Hz.
- Input for stopping welding is available.(The signal can be inputted for 1st and 3rd welding).
- Welding stop speed is 0.5ms.(Fastest in the industry).
Fastest Welding Speed
High Quality With Various Functions
Product Specifications
| Model | WIP3-4280 |
|---|---|
| Welding Power | AC200/220/380/440 V +10% |
| Input frequency | 50/60Hz |
| Output current | 800A |
| Output voltage | 620V(at 440V INPUT) |
| Maximum capacity | 496KVA |
| Rated capacity | 221KVA |
| Duty cycle | 0.1 |
| Weld time setting | 0~9999CYC |
| Dimensions | 300(W) x 650(H) x 565 (D) |
| Controller | CF3-PRG |
