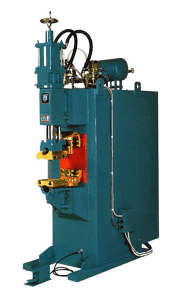

Condenser Spot and Projection Welder
Resistance Spot Welding Machine
CS/CST1 Series
Description
Main Features
Description
Ultra low power consumption widely reduces burden for initial power receiving equipment. A wide variation allowing selection of the machine best suited to task.
Main Features
- Suitable for plated steel sheet and stainless steel sheet.
- Instantaneously discharges electrical energy stored in capacitor and saving energy type.
- Suitable for different kind of metals and nonferrous metals with stable current.
- Uses a tangential force system.
- Stepless pressure guide stroke adjustment system.
- Uses a constant current charge system in control device.
Ultra Low Power Consumption
Saving Energy
Product Specifications
| Specifications / Model | CST1-06-500 | CS-5-1500 | CS-5-3000 | CS-5-4500 | CS-10-6000 | CS-10-7500 | CS-10-9000 | CS-15-12000 | CS-15-15000 |
|---|---|---|---|---|---|---|---|---|---|
| Rated primary voltage, V | 100/200 | 1-Phase 200 | 3-Phase 200 | ||||||
| Average input, kVA | 1.6 | 3 | 5 | 7 | 11 | 13 | 15 | 21 | 25 |
| 1.0 | |||||||||
| Rated output, WS | 508 | 1523 | 3046 | 4569 | 6092 | 7615 | 9138 | 12184 | 15230 |
| Welding rate, welds/min | 60 | 30 | 24 | ||||||
| 30 | |||||||||
| Throat dimensions (opening*depth), mm | 100*100 | 200*400 | 200*600 | ||||||
| Electrode stroke, mm | 20 | 35-80 | 25-75 | ||||||
| Max, electrode force, kN | 0.6 | 4.9 | 9.8 | 14.7 | |||||
| Electrode tip, Φmm | 8 | 16 | 20 | ||||||
| Cooling water, l /mm | – | 5 | |||||||
| Dimension of charge & discharge control box, (W*H*D) mm | One unit type 600*1,190*750 | One unit type 500*1525*700 | One unit type 500*1525*920 | 600*1550*600 | |||||
| Dimension of condenser unit box, (W*H*D)mm | 450*1500*690 | 450*1500*950 | (450*1500*690)*2 | ||||||
