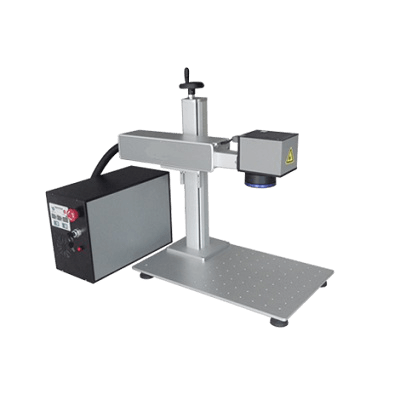

Fiber Laser Marker
Laser Machine
NA Series
Main Features
Main Features
- Compact, stable and energy saving
- High C/P, easy installation and operation
- Professional and powerful marking control capability
- Distinct and artistic marking effect
- Applicable Materials:
– nylon, ABS, PVC, PES, iron, steel, aluminum, magnesium, zinc, copper, gold, silver, titanium, electroplating materials, coating material, plastic, rubber, epoxy resin and many other materials. - Application Industrials
– Suitable for all kinds of high precision marking and engraving
Energy Saving
Professional and Powerful Marking Control Capability
Easy to Operate
Product Specifications
| Model | ILF-20 / 20M | ILF-30 / 30M | |
|---|---|---|---|
| Specification | Laser power | 20W | 30W |
| Wavelenth | 1064nm | ||
| Standard Marking Area | 110*110mm | ||
| Optional Marking Area | 70*70mm， 160*160mm， 200*200mm | ||
| Maximum Marking Speed | ≤7000mm/s | ||
| Minimum Line Width | 0.02mm | ||
| Minimum letter | English: 0.2 x 0.2mm | ||
| Marking Depth | < 1mm | ||
| Location precision | ≤0.0176mm | ||
| Resetting positioning accuracy | 0.02 | ||
| Electrical interface | Support pedal switch ,I/O ,rotary-axis port | ||
| Precision correction of galvanometer, provide precision grid calibration file | |||
| High precision digital scan head 10mm spot(with working status indicator light) | |||
| Working environment needs | Electrical requirements | Ac 220V±10%.50HZ.5Amp OR , Ac 110V±10%.50HZ.10Amp | |
| Unit Power | < 500 w | ||
| Operational temp range | 5-40℃ | ||
| Operational humidity range | 5%-76%, Non-condensing | ||
| Physical dimension | Laser head | 512*80*80mm | |
| Chassis | 410*282*193mm | ||
| Weight | 20kg | ||
| Standard accessories | Cable length between laser head and chassis 1.7m | ||
| Laser goggles, pedal switch, U disk | |||
| Optional accessories | Light lifter workbench dimension:610*550*340mm,lifting range:90~490mm | ||
| Light lifter desktop dimension:760*750*520mm,lifting range:90~490mm | |||
| Rotation axis: holding range for internal jaws:2-22mm(inside),25-70mm(outside),external | |||
| jaws:22-63mm(inside),Concentricity:<0.05mm | |||
| Protective cover :The maximum angle is turned on, Meet the needs of non-smoking workplaces in shopping malls and offices | |||
| Smoke purify machine: Low noise, high efficiency, conducive to clean and beautiful work space, easy to move | |||
