Metal Welding System
Ultrasonic Machine
NA Series
Description
Main Features
Description

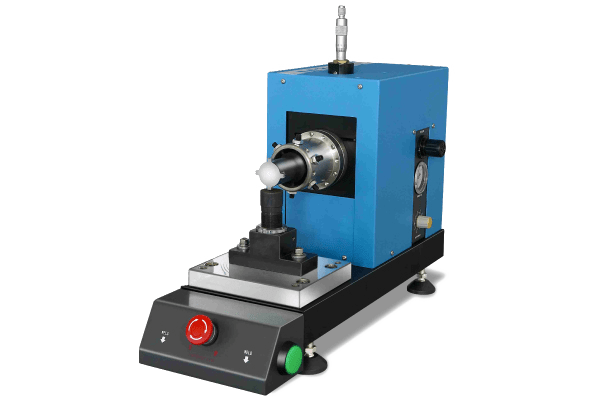

- Ultrasonic Metal Welding machine is a typically innovative high quality product to join similar or dissimilar metal materials.
- It has the highest reliability for fast, high productions and at the lowest cost which is workable for Solar technology, Electrical industry, Automotive industry, Apparatus engineering, Chemical and Pharmaceutical products.
Main Features
- Optional Controller Levels
- Modular Construction
- High Rigid Design
- Digital Ultrasonic Generator
Highest Reliability
High Rigid Design
High Production & Quality
Product Specifications
- Max. power 2000W/3000W
- Operator frequency 20khz
- Maximum force 3000N
- Dimensions W x D x H : 240mm x 650mm x 450mm
- Weight : 50kg
- Digital ultrasonic generator build-in
- Power input 220VAC±10% 50/60hz 10A
- Dimensions W x D x H : 260mm x 495mm x 220mm
- Weight : 10kg
