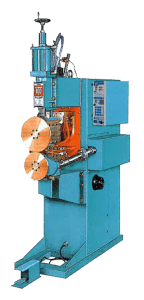

Seam Welder
Resistance Spot Welding Machine
SC Series
Description
Main Features
Description
Latest technology added to the function pursued by different using condition and newly developed power supply housing adopted.
Main Features
- High performance pressure guide and cylinder.
- Uses silver contacts point in conductivity part.
- 3-phase induction motor for electrode drive.
- Free select drive system.
- Equipped welding transformer to withstand highly severe work conditions.
- Slim and compact type.
- Easy maintenance for electric supplied housing.
- State-of-the-art microcomputer.
High Performance
Easy maintenance
Product Specifications
| Sc-6-65-〇G | Sc-6-65-〇K | Sc-6-105-〇G | Sc-6-105-〇K | Sc-10-160-〇G | Sc-10-160-〇K | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated capacity | 57 | 66 | 57 | 66 | 90 | 105 | 90 | 105 | 135 | 160 | 135 | 160 |
| Rated frequency | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Duty cycle | 50 | |||||||||||
| Max. short circuit secondary current | 15000 | 20000 | 25000 | |||||||||
| Weld speed | 0.9-3.0 | 1.0-3.5 | 0.9-3.0 | 1.0-3.5 | 0.9-3.0 | 1.0-3.5 | 0.9-3.0 | 1.0-3.5 | 0.9-3.0 | 1.0-3.5 | 0.9-3.0 | 1.0-3.5 |
| Throat dimensions | 90 x 200 | |||||||||||
| Max. electrode force | 5.9 | 9.8 | ||||||||||
| Electrode stroke | 30:95 | |||||||||||
| Electrode dimensions | Upper 12 x 250DIA Lower 12 x 200DIA | |||||||||||
| Drive system | Gear | Knurl | Gear | Knurl | Gear | Knurl | ||||||
| Cooling water | 35 | 40 | ||||||||||
