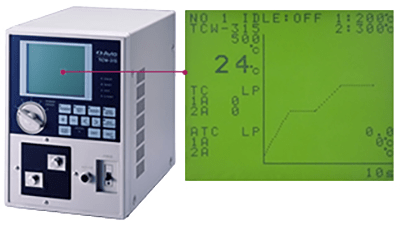

TCW-315
Pulse Heat Unit
Spot Welding Nugget Checker
Description
Main Features
Description
- Best-selling unit suitable for various bonding such as soldering, thermocompression bonding, and thermal cushime!
Main Features
- High reliability bonding heating and cooling while pressurized, it is possible to join by suppressing positional deviations in the workpiece.
- Various temperature profiles local and instantaneous heating suppresses the heat effect on peripheral parts.
- High reproducibility Digital PID control provides good temperature and time reproducibility, eliminating the need for skilled workers.
- Lead-free compatible by setting high temperature and long-term heating, it is compatible with lead-free solder.
- User interface RS-232C&O is standard, making it easy to connect to external devices such as automatic machines.
- Various monitoring functions temperature monitor (average value, peak value) abnormal detection (temperature overtemperature, thermocouple disconnection, etc.)
- Other functions setting condition memory (15 conditions) solenoid valve control for heater tip/tool cooling auxiliary thermocouple monitor (1 system).
High Reliability Bonding
Best Selling Unit
High Reproducibility
Digital PID Control
Product Specifications
| Item | TCW-315 |
|---|---|
| Heating temperature | Room temperature to 600° C 1° CStep E, J type Room temperature to 900° C K type (optional) |
| Heating time | 000-999 (x1 00ms, x1 Oms) |
| Rated capacity | 750VA (50%) |
| Heat control | 2 steps |
| Monitor function | temperature |
| Interface | RS-232C, I/O |
| Trance | built-in |
| Transformer secondary voltage | 0.88V, 1.24V. 1.75V. 2.47V. 3.5V |
| Power | Single-phase AC200V-230V+10% 15A(Options: AC100-115V)* |
| External dimensions / mass | W200 X D320 X H283mm =19.5kg |
