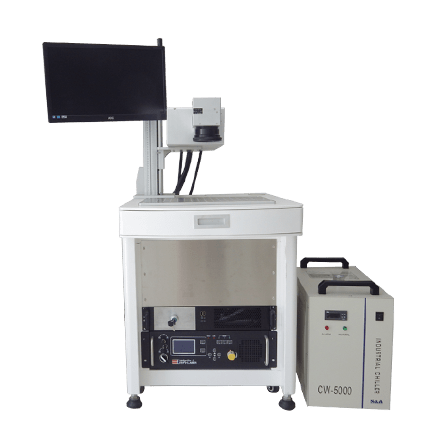

UV Laser Marker
Laser Machine
NA Series
Applicable Material
Applicable Industries
Applicable Material
- Nylon, ABS, PVC, PES, aluminum, steel, magnesium, zinc, titanium, copper, gold, silver, electroplating materials, coating materials, plastics, rubber etc..
Applicable Industries
- Optical devices, glass processing, eyeglasses and clock, precision machinery, ceramics, plastic keys, electronic components, mobile components, auto parts etc..
High Reliability Welding
High Performance
Product Specifications
| Model | ILC-U-3 UV | ILC-U-5 UV |
|---|---|---|
| Wavelength | 355nm | |
| Marking power | ≥3W | ≥5W |
| Beam quality M² | ＜1.2 | |
| Beam diameter | 1.8±0.1mm | |
| Laser working mode | Pluse | |
| Repetition rate | 10~120KHZ | |
| Standard engraving range | 110*110mm | |
| Optional engraving range | 70*70mm，140*140mm，200*200mm | |
| Minimum line width | 0.03mm | |
| Minimum character | 0.1mm | |
| Repeat accuracy | ±0.02mm | |
| Electrical requirements | 100~240V，50/60HZ | |
| Cooling method | water cooling | |
| Other features | Electric control box and laser head interconnection cable length of 2.5 meters | |
| Ambient temperature: 18~35℃ | ||
| Power consumption | 1500W | |
| Standard accessories | Cabinet work table, size: 600 * 1130 * 1543mm Lifting range: 80-500mm | |
| Display, keyboard, mouse, pad | ||
| Foot switch, laser control panel | ||
| Optional accessories | Smoke purifier: beneficial to clean and beautify work space | |
